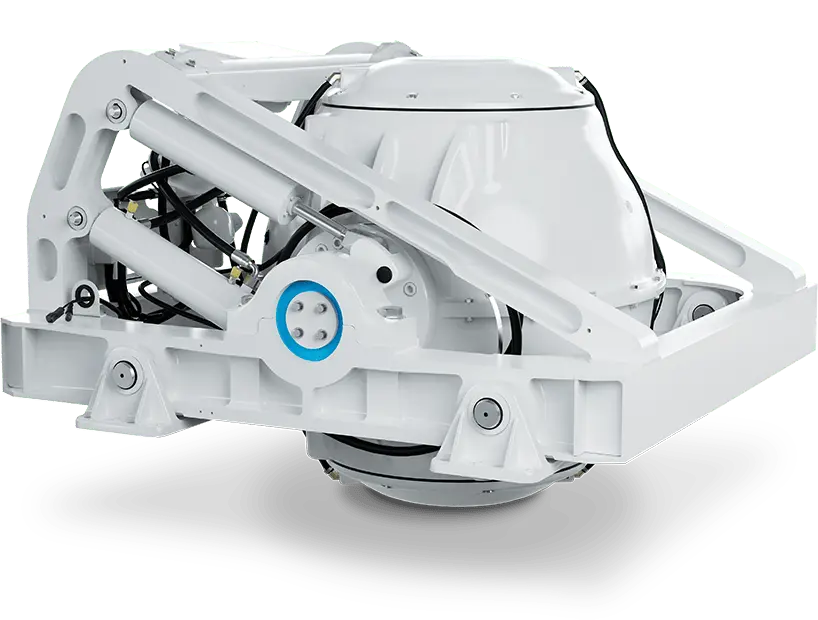

GYRO 40

$337,800

The GYRO 40 is designed to eliminate up to 95% of boat roll on boats 85 feet and up (up to 115 tons) and now features field replaceable bearings (FRB). Engineered from the previous GYRO 35 model, we've improved performance without sacrificing power, space, or weight. Multiple units can be fitted for larger boats.

More Info
Call (954) 998-0140

Is the GYRO 40 for you?

Find the right GYRO for you

Look inside exceptional.

  • Max Rated Speed 5,150 RPM
  • Angular Momentum at Max Rated RPM 40,000 N-M-S
  • Max Anti-rolling Torque at Max Rated RPM 104,720 N-M
  • Spool-up Time to Max Rated RPM 70 minutes (5,150 RPM)
  • Spool-up Time to Stabilization 40 minutes (3,863 RPM)
  • Spool-Up Power 5000 Watts
  • Operating Power 1,900 - 4,400 Watts
  • Operating Power Input 208-230 VAC @ 30 Amps, 50/60 Hz
  • Control Power 240 Watts Max
  • Control Power Input 24 VDC @ 15 Amps Max
  • Seawater Pump Power Input 24 VDC @ 20 Amps Max
  • Weight 4,074 lb (1,848 kg)
  • Envelope Dimensions 54.3 L x 55.9 W x 40.6 H (inches) 1.38 L x 1.42 W x 1.04 H (meters)
  • Noise Output <73 dBC @ 3.3 feet (1 meter)
  • Seawater Supply to Heat Exchanger 13 GPM (49 LPM) Minimum 15 GPM (57 LPM) Maximum

Active Control

GYRO gyro stabilizers use smart technology to actively sense the sea state and instantaneously react for optimal performance at all speeds and sea conditions.

Vacuum Sealed

GYRO’s vacuum encapsulation not only protects its critical components from the harsh marine environment, but also cuts flywheel weight by two-thirds and halves power draw.

New Dash Display

GYRO’s new user-friendly dash display makes stabilization simple. Now, you can integrate your existing dash units, and control your GYRO with ease.

Starboard Yacht Group is a Certified GYRO Installation & Service Center for all units.

We are not your average GYRO Specialist. Starboard Yacht Group is a leading GYRO service provider in Fort Lauderdale, FL. No matter the size or model of your boat, Starboard Yacht has the expertise to transform your experience with every GYRO in the recreational line.

What does it take to make a GYRO fit?

Starboard Yacht goes beyond the limits of an instruction manual. See how we use our experience and expertise to get the job done on a level of fit, finish, and quality that is on par with or better than new.

Which GYRO is best for you?

GYRO gyro stabilizers have been successfully installed in over 15,000 vessels to date. We have the hard predictive and performance data to determine which GYRO installation is best for you based upon your vessel’s length and beam size.

GYRO 03

Boat Size
35' - 41'
Boat Weight
Up to 10.5 tons
Voltage
12V DC
Max Rated Speed
8,450 RPM

GYRO 04

Boat Size
38' - 44'
Boat Weight
Up to ~15 tons
Voltage
12 VDC
Max Rated Speed
8,250 RPM

GYRO 01

Boat Size
23' - 30'
Boat Weight
Up to 5.5 tons
Voltage
12V DC
Max Rated Speed
9,750 RPM

GYRO 02

Boat Size
30' - 36'
Boat Weight
Up to 7.5 tons
Voltage
12V DC
Max Rated Speed
9,000 RPM

GYRO 04.5

Boat Size
40' - 46'
Boat Weight
Up to ~18 tons
Voltage
12 VDC
Max Rated Speed
9,300 RPM

GYRO 06

Boat Size
44' - 53'
Boat Weight
Up to 24 tons
Voltage
12V DC
Max Rated Speed
9,750 RPM

GYRO 09

Boat Size
50' - 60'
Boat Weight
Up to ~30 tons
Voltage
12V DC
Max Rated Speed
9,000 RPM

GYRO 10.5

Boat Size
50' - 62'
Boat Weight
Up to ~36 tons
Voltage
24 VDC
Max Rated Speed
8,700 RPM

GYRO 14

Boat Size
55' - 68'
Boat Weight
Up to ~45 tons
Voltage
24 VDC
Max Rated Speed
7,600 RPM

GYRO 16

Boat Size
35' - 41'
Boat Weight
Up to 10.5 tons
Voltage
12V DC
Max Rated Speed
8,450 RPM

GYRO 18

Boat Size
60' - 75'
Boat Weight
Up to 56 tons
Voltage
24 VDC
Max Rated Speed
6,150 RPM

GYRO 26

Boat Size
70' - 85'
Boat Weight
Up to ~75 tons
Voltage
24 VDC
Max Rated Speed
5,000 RPM

GYRO 35

Boat Size
38' - 44'
Boat Weight
Up to 15 tons
Voltage
12V DC
Max Rated Speed
8,250 RPM
Find the right one for you
